Wiring Module for the Permanent Magnet Synchronous Machine

8542-1

Description

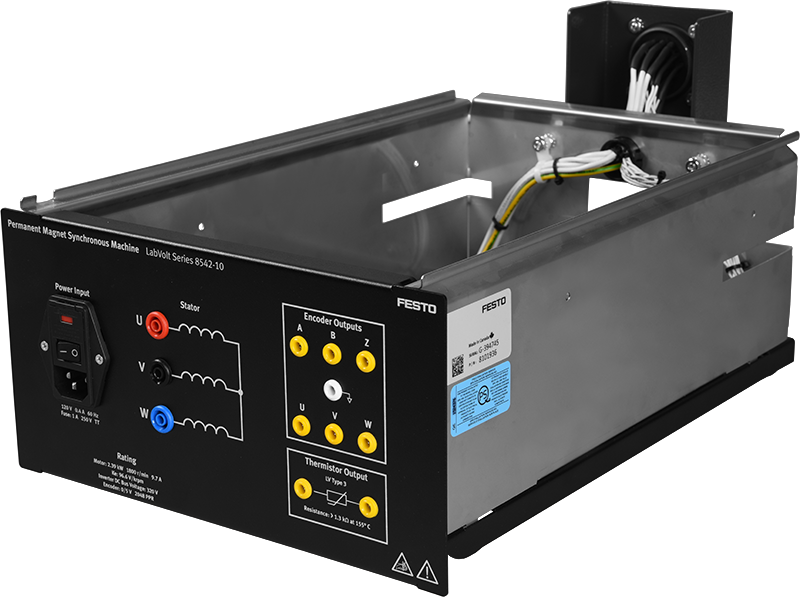

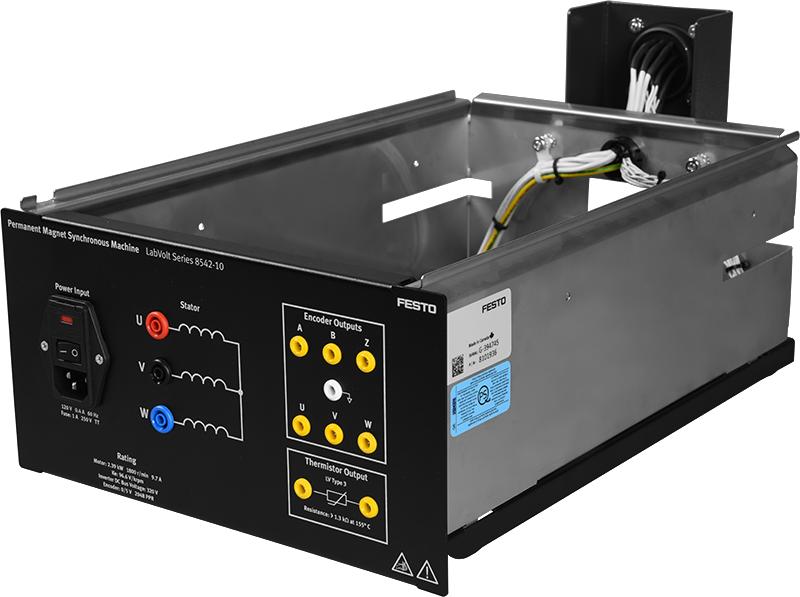

The Wiring Module for the Permanent Magnet Synchronous Machine, Model 8542-1, consists of a connection module. It provides connection access to the Permanent Magnet Synchronous Machine from the Mobile Workstation through a flexible connecting cable. The module has three 4 mm color-coded safety jacks for access to the machine windings, two 2 mm miniature jacks for access to the thermistor in the machine rotor, and four 2 mm miniature jacks for access to the Hall effect sensors in the machine rotor. The operation of the Hall effect sensors requires the wiring module to be powered using a low-voltage 24 V ac power source.


Download Image

Download Image
