Dissectible Machines/Motor Winding Kit
8020-3Gallery
Dissectible Machines
Description

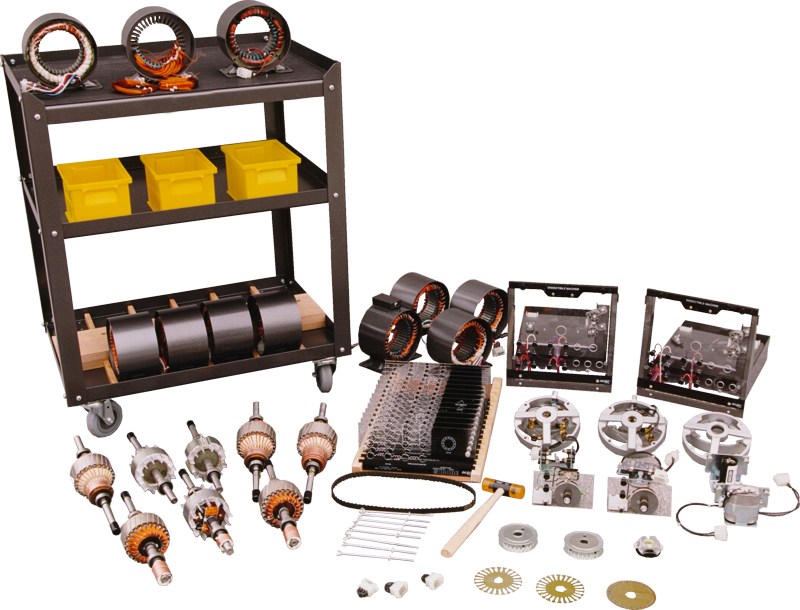

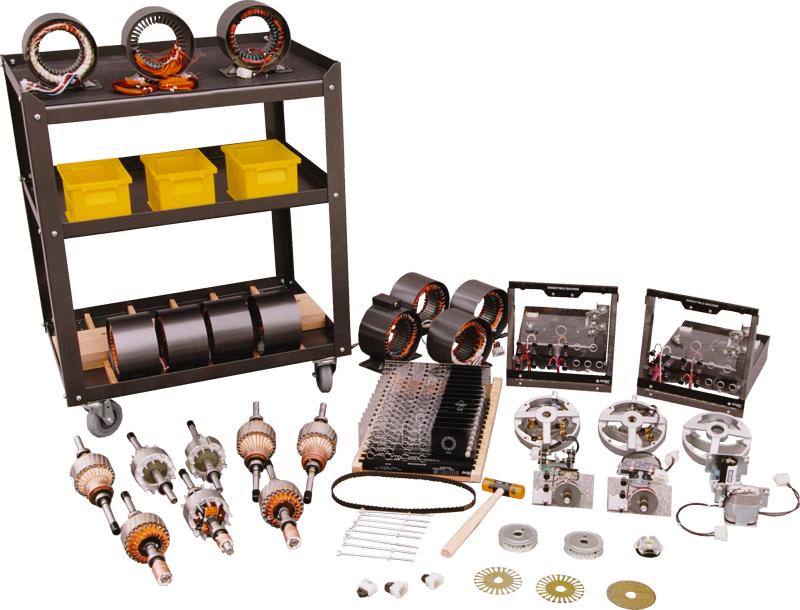

The Dissectible Machines/Motor Winding Kit is an electromechanical (EMS) trainer that provides hands-on instruction in the construction and operation of rotating machines as well as construction techniques for electrical machines, starting with such basic components as laminations, motor ends, and magnet wire, and progressing to the construction of four different machines.
List of equipment
| Qty | Description | Model Number |
|---|---|---|
| 1 | Work Bench for the Dissectible Machines Training System | 8120 |
| 1 | Work Bench for the Motor Winding Kit | 8120-1 |
| 2 | Assembly Housing Module | 8163-1 |
| 1 | Dissectible Machine Parts | 8201-2 |
| 1 | Motor Winding Kit Parts – Add-On to 8203 | 8203-1 |
| 1 | Manual Coil Winder | 8901 |
| 1 | Timing Belt | 8942 |
| 1 | Dissectible Machines (Workbook) | 25853 |
| 1 | Motor Winding Kit (Workbook) | 26145 |
