Three-Phase Transmission Line

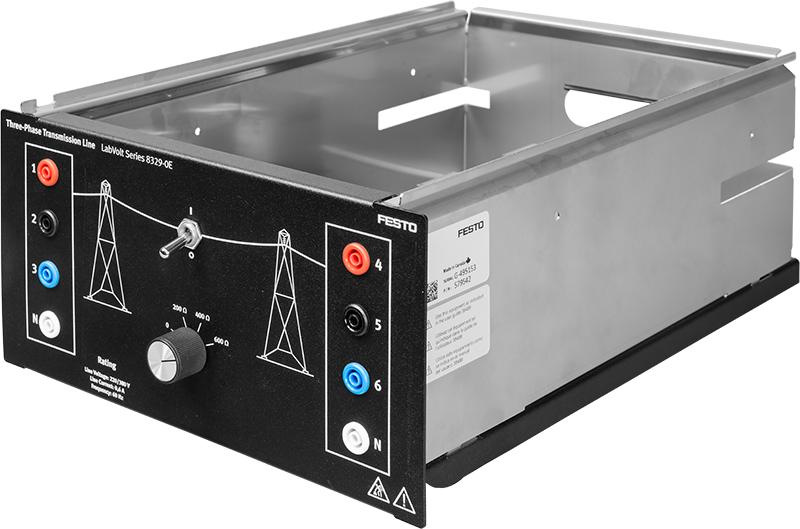

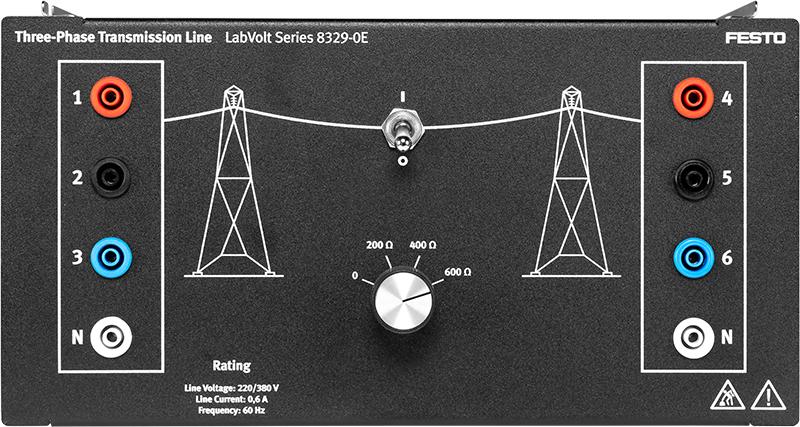

The Three-Phase Transmission Line consists of three iron-core inductors enclosed in a half-size EMS module. The inductors are specifically designed to simulate a high-voltage ac transmission line (typically 315 kV lines). The line impedance can be adjusted to four different values using a selector switch mounted on the front panel. A three-pole switch is used to induce transients by momentarily interrupting the power flow. Both sides (sender and receiver) of the Three-Phase Transmission Line are terminated on the front panel by 4 mm color-coded safety banana jacks.

Three-Phase Transmission Line
