Code reader for 1D and 2D codes with Ethernet communication on Quick-Fix® safe and quick mounting system for profile plates.

Technical Data:

- Resolution: 736 x 480 pixels (WVGA), monochrome

- Focus setting with adjusting screw

- Lighting type: integrated

- Frame rate: 50 fps

- Working distance: 30 mm - infinite

- Detects the following codes: 2/5 industrial, 2/5 interleaved, Codabar, Code 128, Code 39, Code 93, EAN, ECC 200, GS1, PDF 417, Pharmacode, QR code, RSS, UPC

- Operating voltage: 24 V dc

- Communication protocols: TCP/IP, Ethernet/IP, FTP, SMB, PROFINET

- Digital inputs (2): PNP/NPN, switchable

- Digital outputs (2): PNP/NPN, switchable

- Rotation: 360° with 15° steps

- Connection via M12 (4-pin) port for communication and M12 (12-pin) for power (cables included)

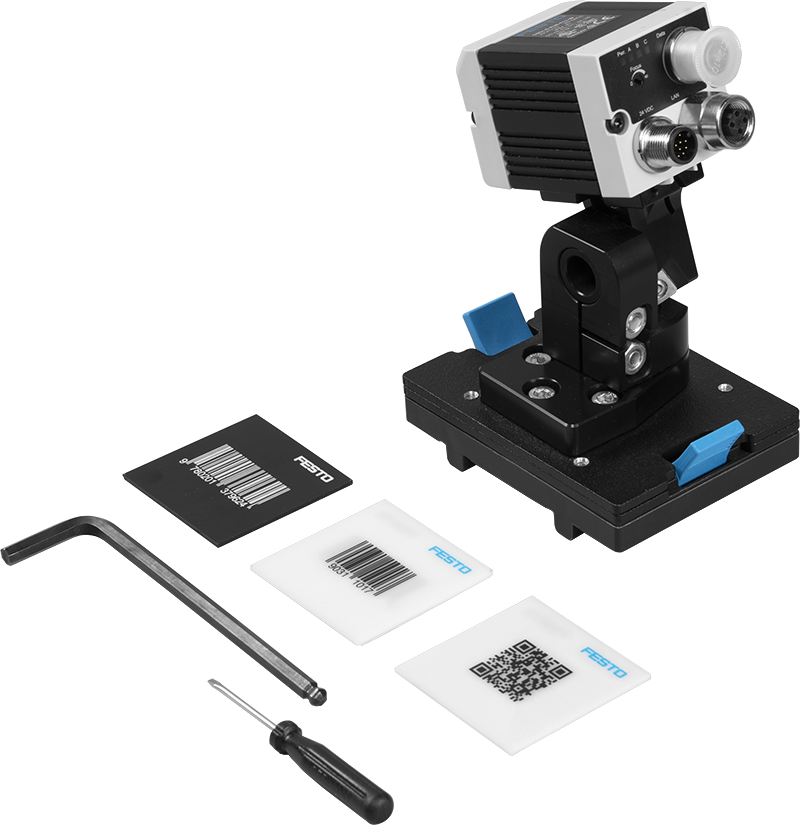

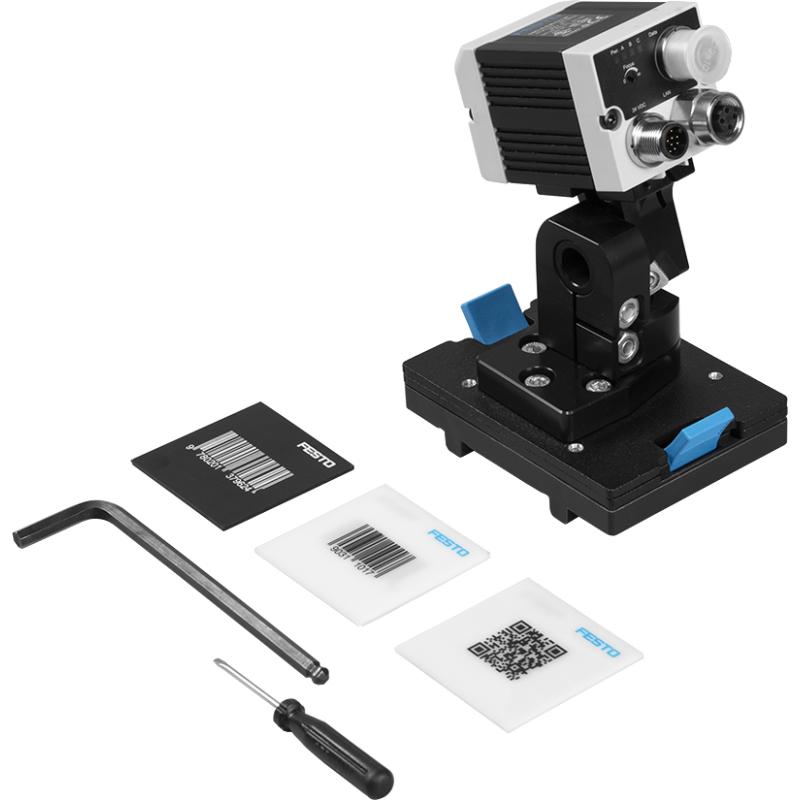

- Scope of delivery: Code reader mounted on Quick-Fix® system, necessary codes mounted on plates compatible with Slide unit (572740)
