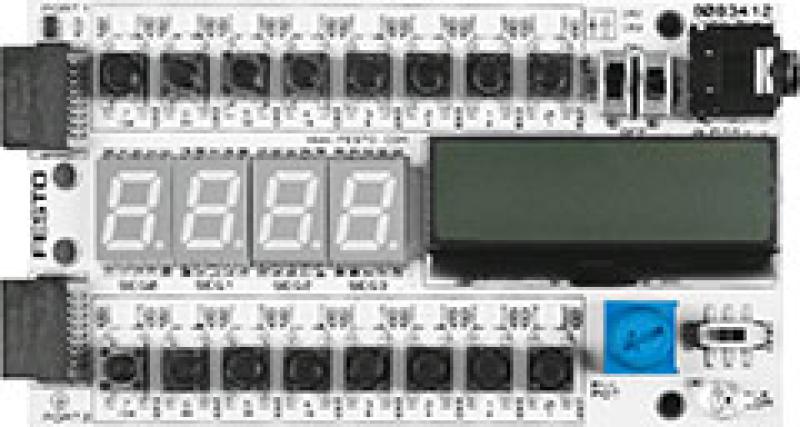

This flexible combination board is an ideal complement to our microcontroller boards for learning basic I/O programming and project development. The board will work with any microcontroller system allowing multiple technologies to be explored using a single expansion board.

The board consists of:

• 16 I/O points, each including a LED and a push-button switch.

• A 20x4 character LCD alphanumeric display compatible with the standard HD44780 type displays. The graphical LCD is driven via an intelligent conversion module to allow it to be treated as a standard Alphanumeric HD44780 compatible device.

• 4 7segments display

• Potentiometer and light sensor

• Audio output socket

The board is ideally used in conjunction with our courseware to help learn programming using flow charts, C or assembly code.
