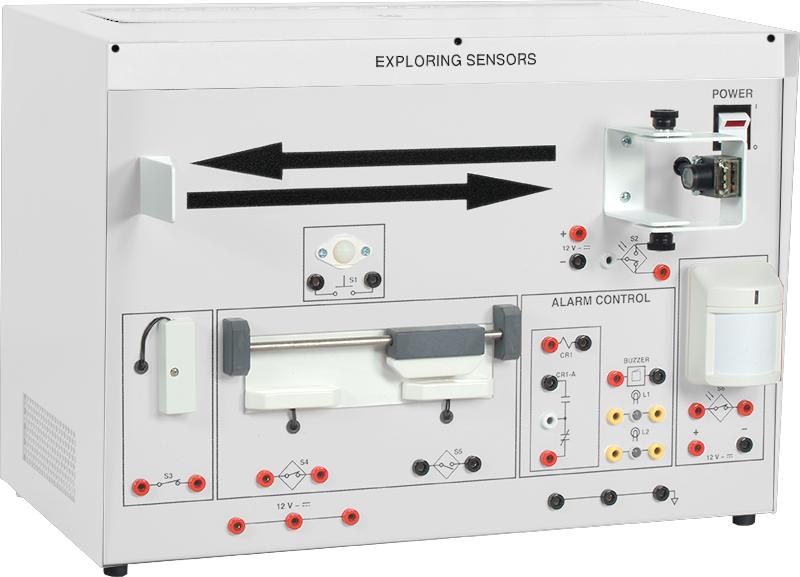

Exploring Sensors

3341

Description

Sensors play an increasingly important role in today's advanced world. The Exploring Sensors module allows students to explore the different uses of mechanical and electronic sensors from a security applications viewpoint.

Students are introduced to the variety and characteristics of sensors. They build a variety of circuits using magnetic sensors, vibration/shock sensors, pulsed infrared sensors, and motion sensors. Students also build alarm circuits using sensors, an electromechanical relay, and a buzzer.

Sensors in this module include an infrared photoelectric beam sensor, an infrared motion detector, a mechanical switch, a vibration detector, and magnetic proximity sensors.

Features & Benefits

  • Cost-effective
  • Accommodates two students
  • Includes comprehensive curriculum with lab procedures
  • Safe tabletop system
  • Components are identified
  • Perfect for Tech-Design programs

Topic Coverage

  • Introduction to the Trainer
  • Control Panels
  • Plunger Switches
  • Magnetic Proximity Sensors
  • Shock/Vibration Sensors
  • Electronic Active Sensors
  • Electronic Passive Sensors
  • Wiring Installation Techniques
  • Automobile Alarm Systems
  • Designing an Alarm System

List of equipment

Qty Description
8 Tooth Lockwasher K-Lock Hexagonal Nut 832 22031
1 Tooth Lockwasher K-Lock Hexagonal Nut 1032 22032
17 22114
6 SCREW 632 3/8" ROUND HEAD PHILIPPS 22171
8 Round-Head Phillips Machine Screw 832 0.375" 22628
4 Lead 4 mm, 30 cm, yellow 23225
4 Lead 4 mm, 60 cm, red 23226
4 Lead 4 mm, 90 cm, blue 23227
7 MOUNT PRESS BLACK 95546

Downloads


Exploring Sensors
Download Image
