Geothermal Learning System

46126

Description

A compact workstation to teach the fundamentals of residential geothermal heat pumps

This system allows students to develop knowledge in heat transfer and air conditioning. The exercises are designed learn the skills required during installation, operation, and troubleshooting of geothermal heat pumps.

Geothermal heat pumps are among the most energy efficient systems available today for heating and cooling residences. Like solar and wind energies, geothermal is among the renewable energy sources whose utilization increases each year, meaning that more qualified technicians need to be trained.

The Geothermal Learning System is designed to maximize learning capabilities by regrouping every subsystem in geothermal home energy installations. It consists of a geothermal heat pump, ground-loop heat exchanger, pumping station, domestic hot water system, circulation pump, control panel, and the instrumentation required to measure the operating parameters of the system.

Students learn the fundamentals of heat transfer, refrigeration, and air conditioning applied to geothermal heat pumps. It is suitable for varied educational requirements: future system designers and builders, maintenance technicians, and students learning the concept of energy efficiency in general.

With its courseware containing detailed theory and practical exercises, the Geothermal Learning System is the most efficient and effective way to gain the knowledge and skills that are put into practice every day in the geothermal industry.

Features & Benefits

  • Compact and safe workstation that faithfully replicates a geothermal residential installation
  • Simulates the effects of various ground-loop lengths and configurations as well as changing environmental conditions
  • Temperature measurement points, flow meters and pressure gauges to demonstrate the theoretical concepts involved
  • Standard commercial components students will use in the field
  • Six instructor-insertable electrical faults to develop troubleshooting skills

Topic Coverage

  • Explain the concept of geothermal energy, geothermal heat pumps, ground loops, and the refrigeration cycle
  • Plot the refrigeration cycle on a pressure-enthalpy diagram using pressures and temperatures measured on the learning system
  • Determine COP and energy efficiency ratio (EER) using measured temperature, humidity, voltage, and current values
  • Learn how to characterize a geothermal heat pump system
  • Analyze and compare two geothermal heat pump system projects using reports produced by software design tools

Downloads

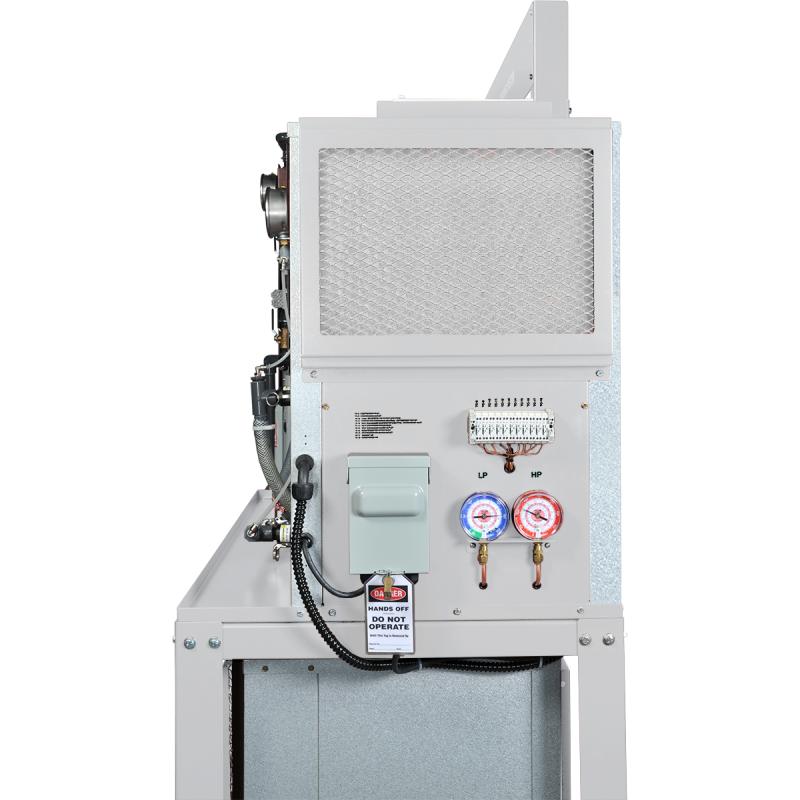

Pullout disconnect switch, thermocouple terminal blocks, and pressure gauges.
Download Image

Download Image

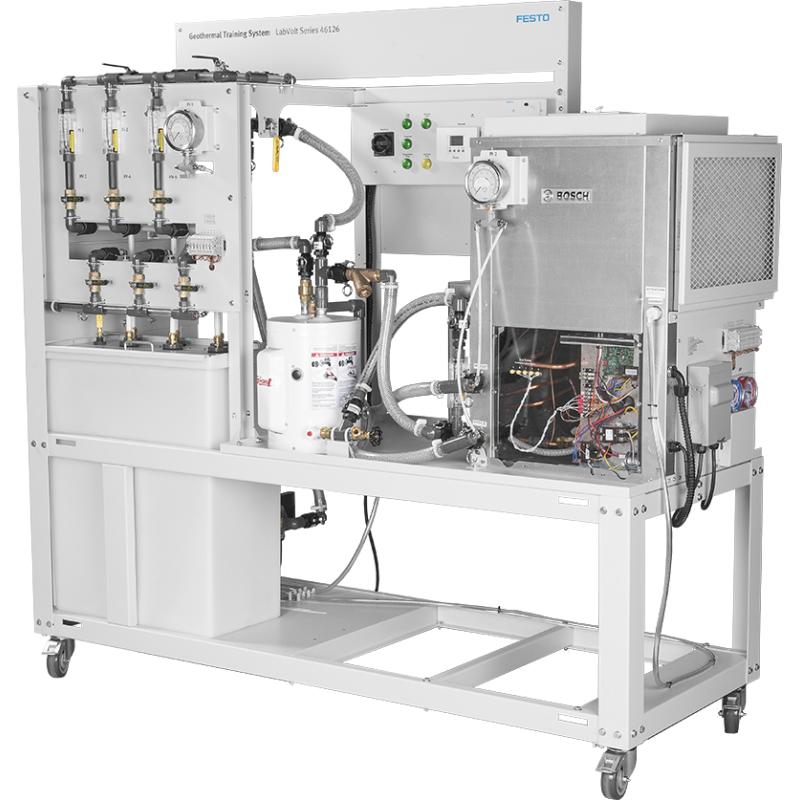

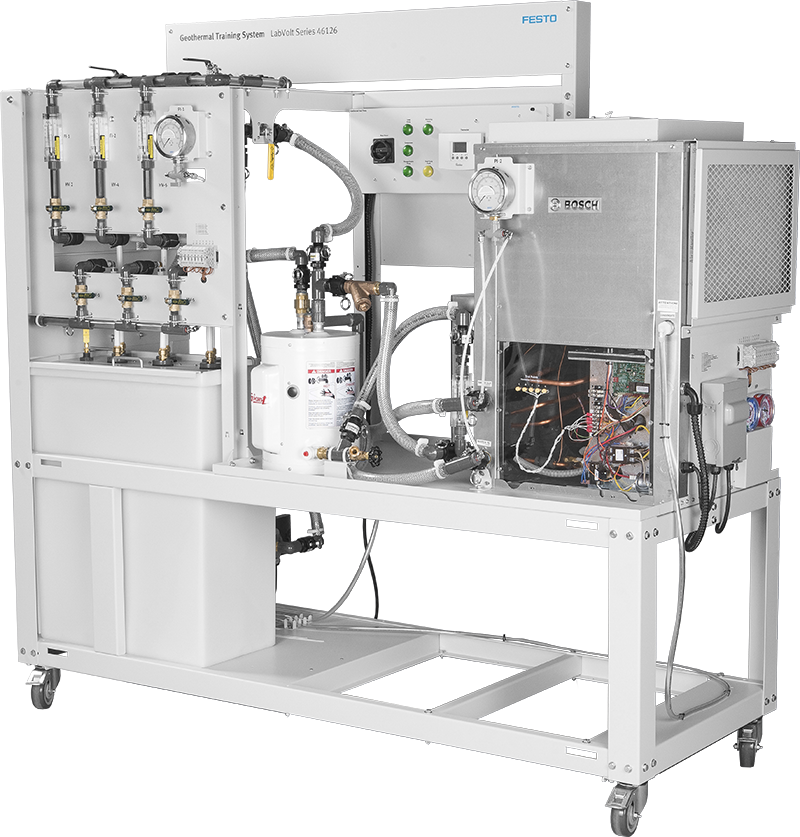

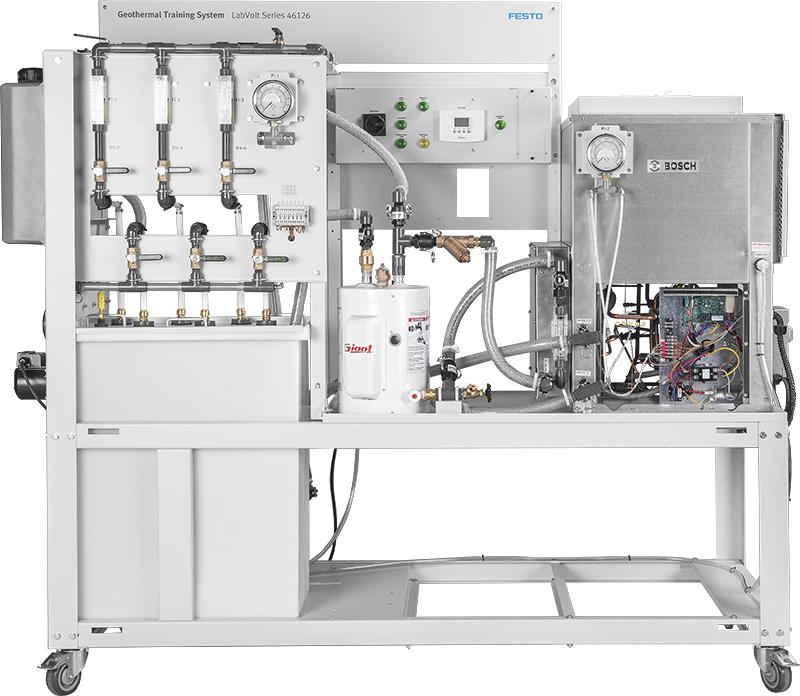

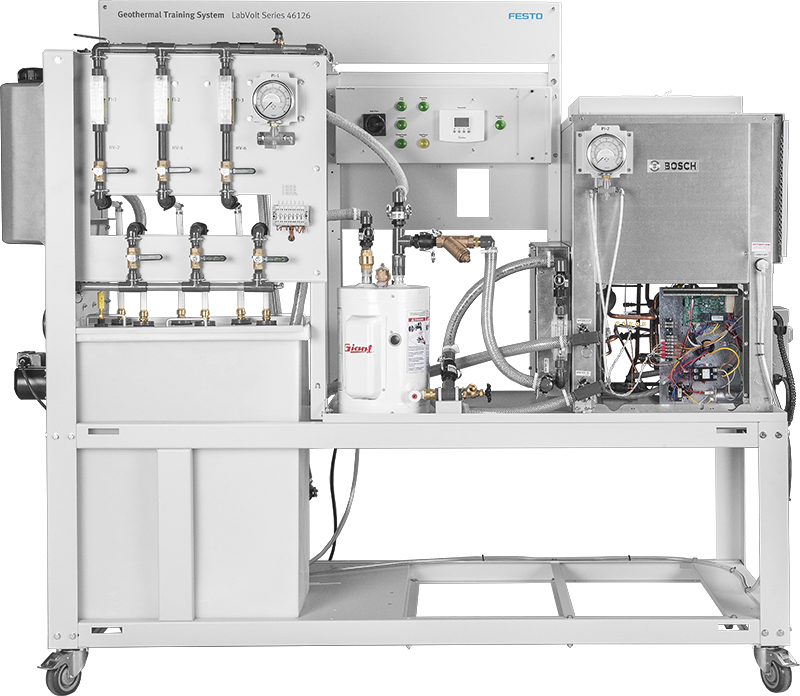

Geothermal Training System
Download Image

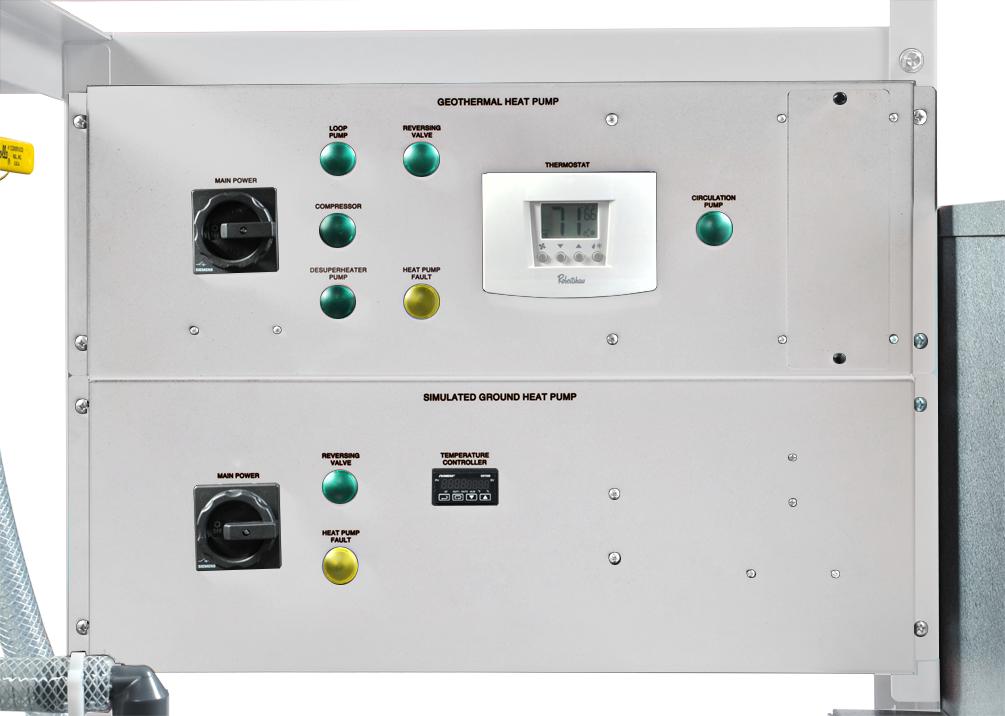

Geothermal Heat Pump control panel (both models) and Simulated Ground Heat Pump control panel (46126-A only)
Download Image

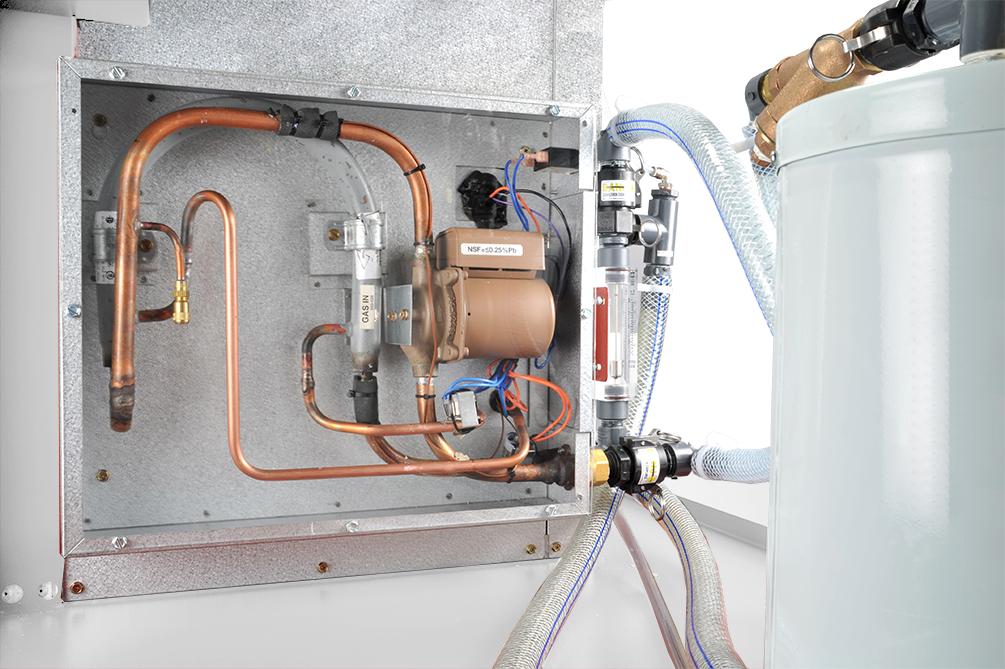

Partial view of the domestic hot water system.
Download Image

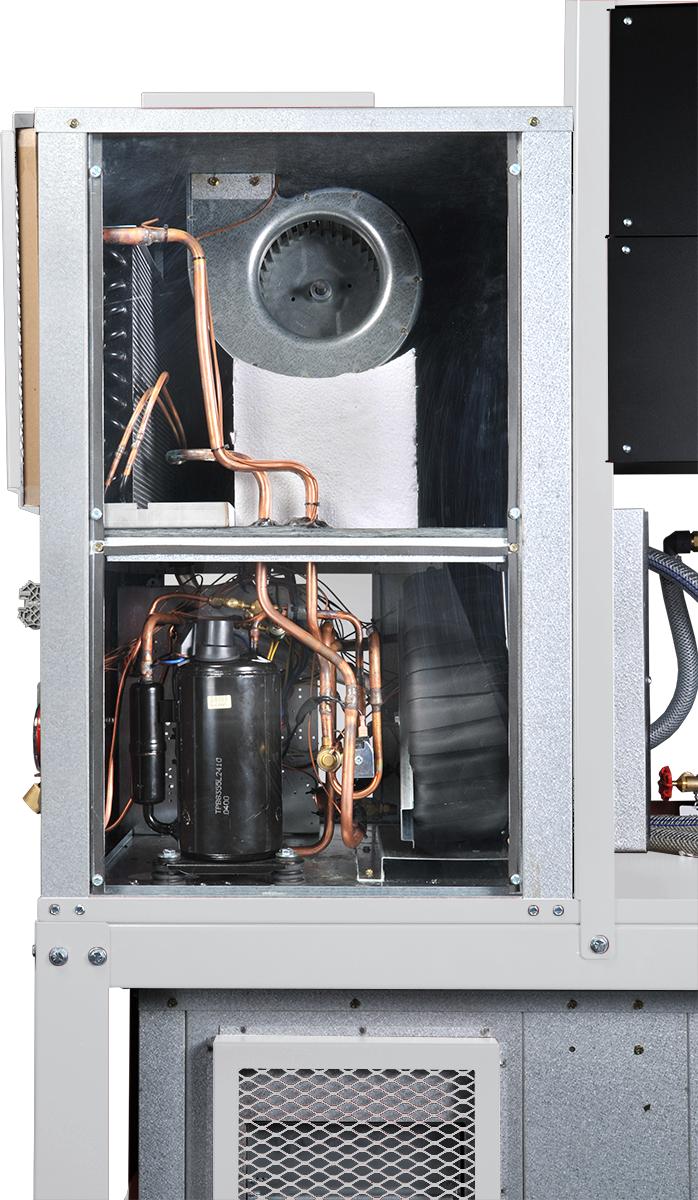

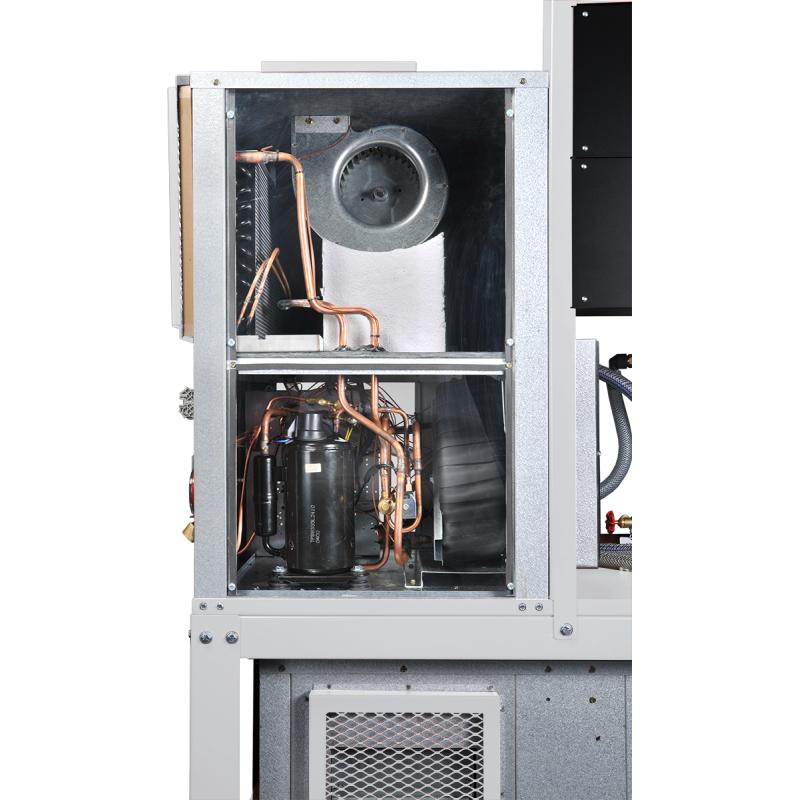

It is possible to safely look inside the heat pump cabinet through clear plastic panels while the system is running.
Download Image

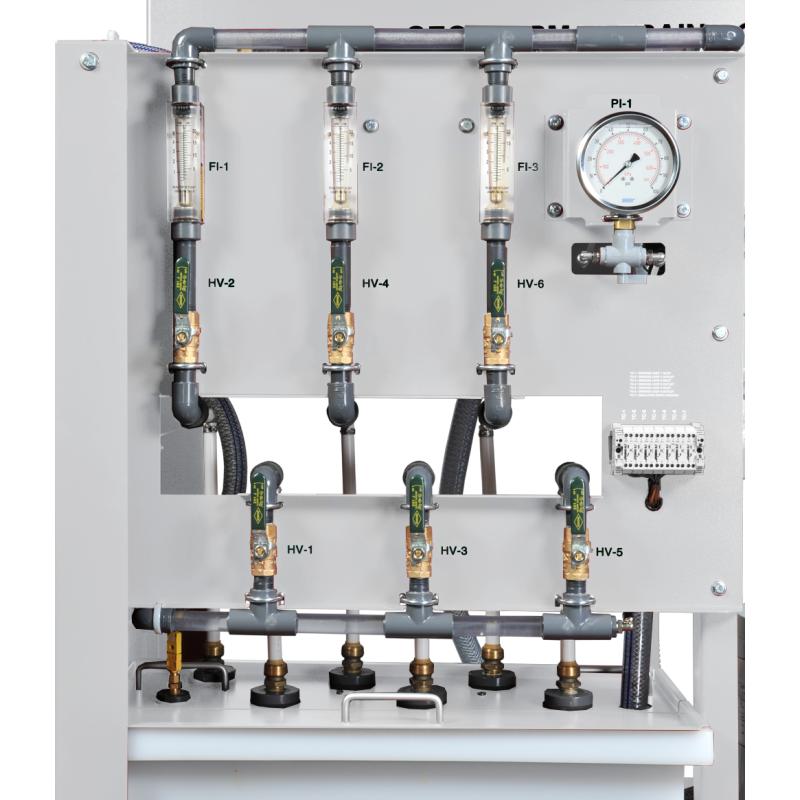

Ground loop header
Download Image

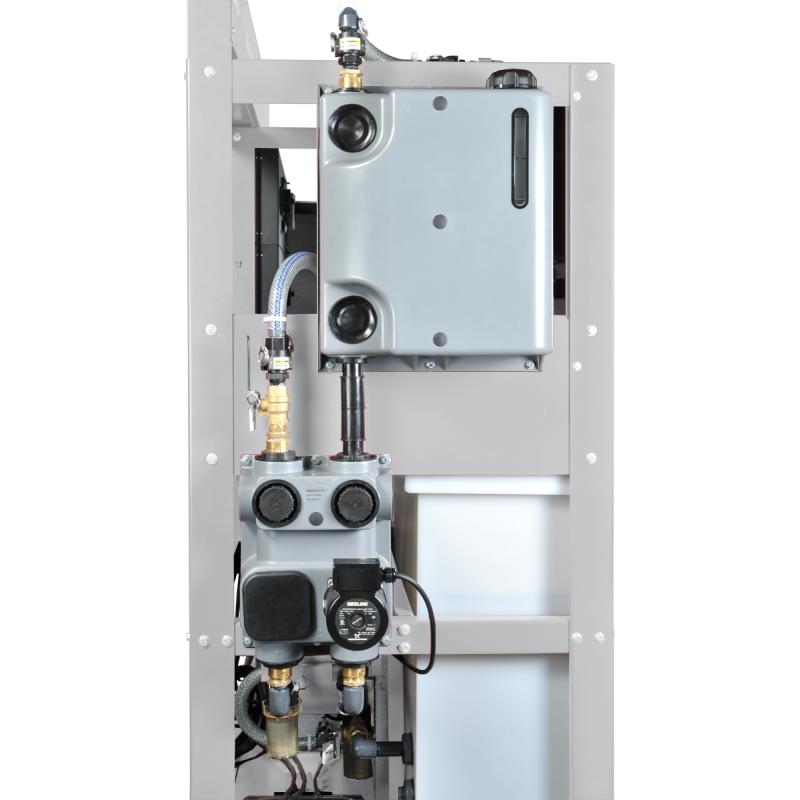

Priming tank and circulation pump
Download Image

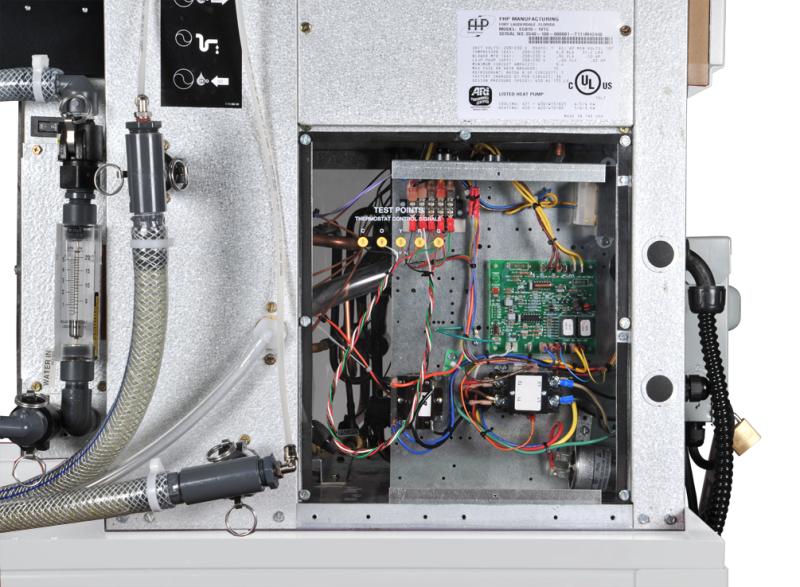

Connections to the control board are provided for troubleshooting purposes.
Download Image
