Analog Communications Simulation Software (LVSIM®-ACOM)

9480

Description

LVSIM®-ACOM is a Windows®-based simulation software that covers the same courseware as the Analog Communications Training System, Model 8080. It recreates a three-dimensional classroom laboratory on a computer screen. All laboratory equipment of the Analog Communications Training System is replaced with three-dimensional replicas (images), which students can manipulate on the computer screen. Using the mouse, students can install virtual Analog Communications equipment in the laboratory, connect the equipment, perform a lab exercise, and obtain the same results as with the actual training equipment.

Sophisticated mathematical models accurately simulate the electrical characteristics of all the physical modules: AM / DSB / SSB Generator, AM / DSB Receiver, SSB Receiver, Direct FM Multiplex Generator, Indirect FM / PM Generator, and FM / PM Receiver. All modules contained in the LVSIM®-ACOM system feature the same front panel information as the physical modules.

Features & Benefits

  • Students practice and test their skills before they apply what they have learned to actual equipment.
  • Features the same functionality and appearance as the actual equipment.
  • Sophisticated mathematical models accurately simulate the characteristics of the actual modules.
  • Comes bundled with LVDAM-COM.
  • Install, move, rotate, connect, and remove Analog Communications equipment and components
  • Save and restore equipment setups, data, and waveforms
  • Cost-effective learning tool

Additional equipment required to perform the exercises

Qty Description System Number
1 Personal Computer 8990

Optional Equipment

Qty Description System Number
1 Analog Communications Simulation Software (LVSIM®-ACOM) (Manuals on CD-ROM) 26867-A

Downloads

Product Fixes

Drivers for the PCI network security device are missing on the CD-ROM.

The software cannot find the security device.

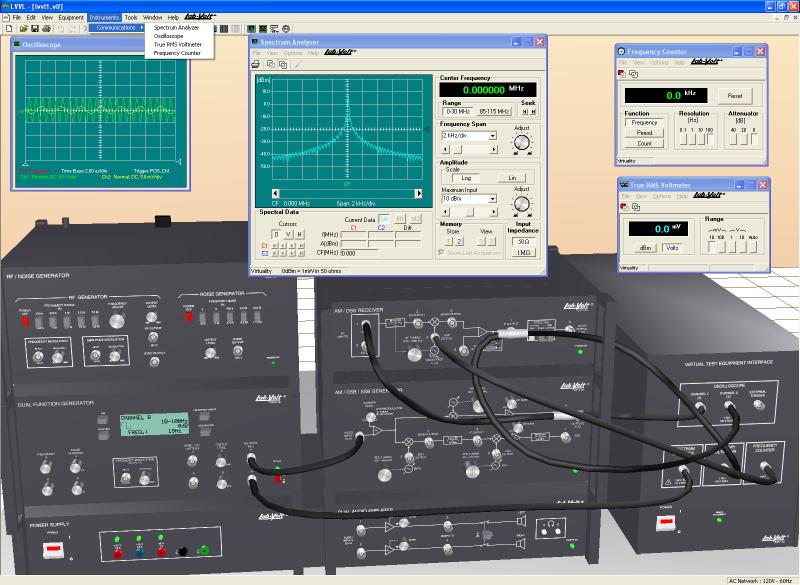

Analog Communications Simulation Software (LVSIM®-ACOM)
Download Image

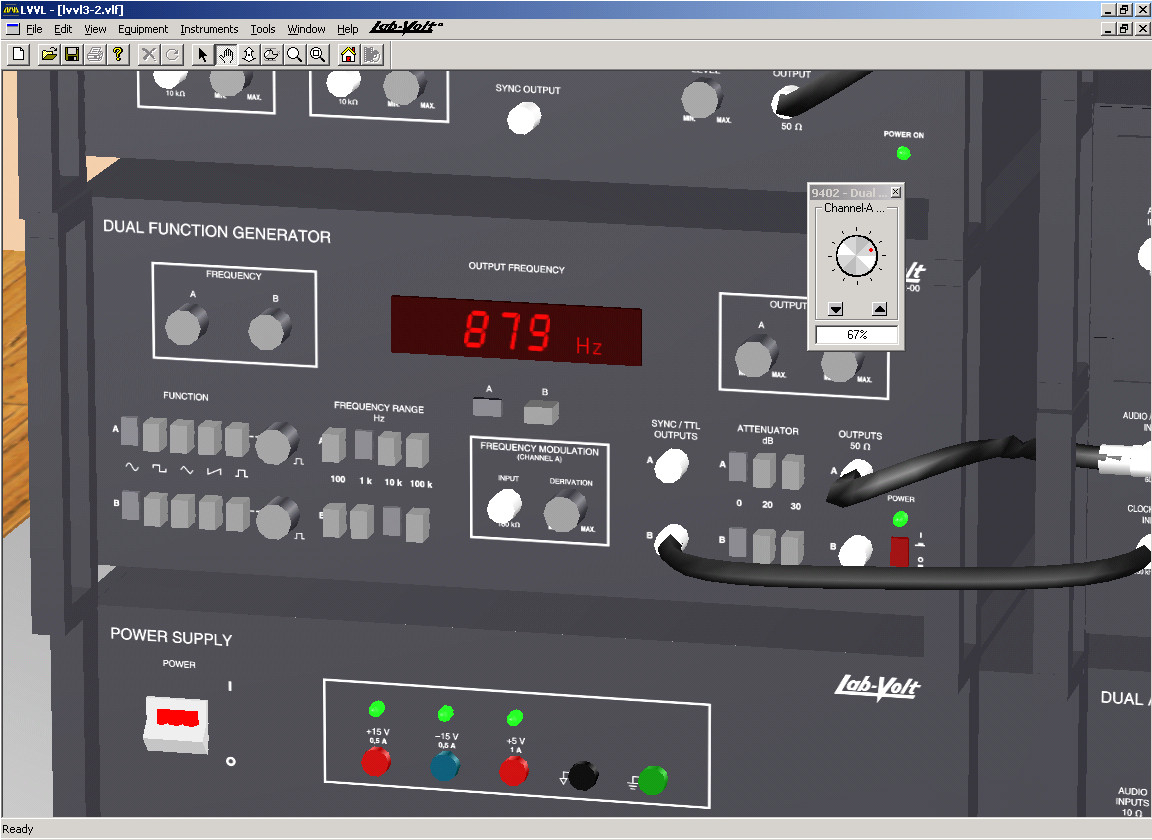

Frequency setting using buttons or a control knob
Download Image
