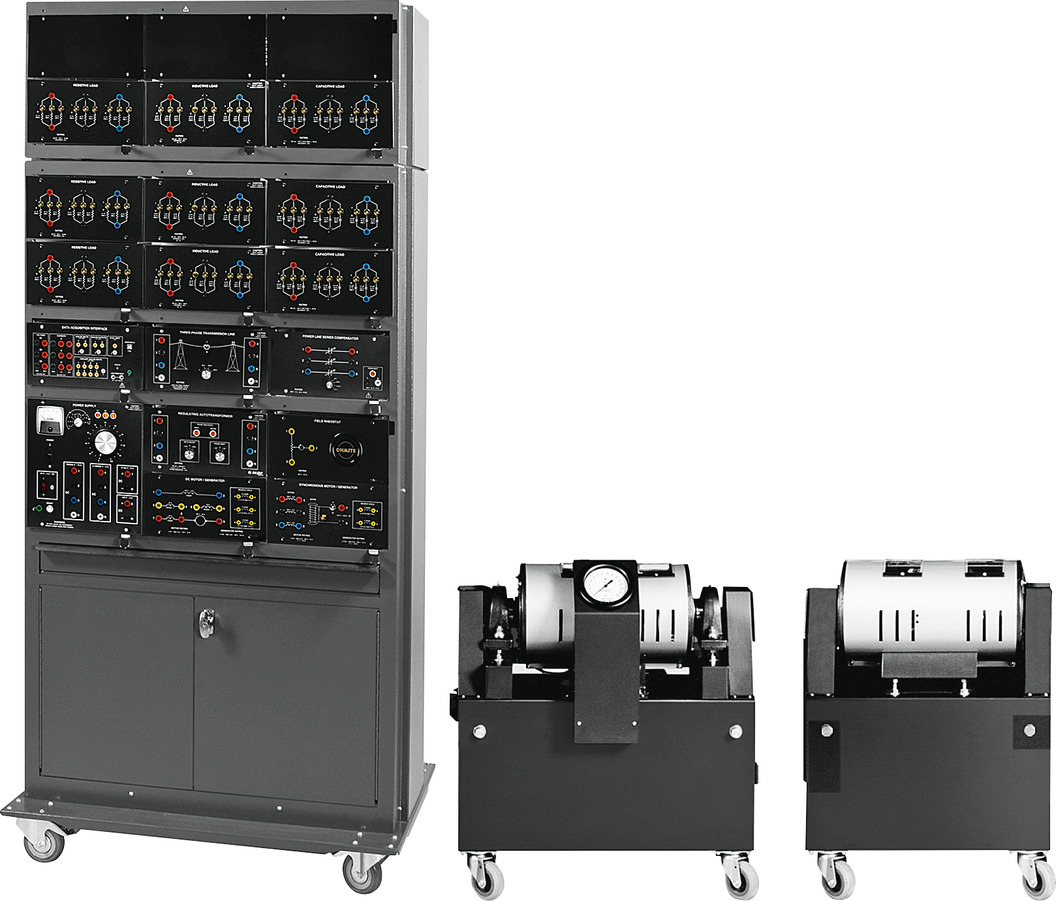

2 kW Electric Power Transmission Training System - Analog Meters

8059-2

Description

The 2 kW Electric Power Transmission Training System - Analog Meters is a complete system that uses analog meters to perform electrical measurements.

List of equipment

Qty Description Model Number
1 Mobile Workstation 8110-2
1 Three-Module Workstation 8131
2 Three-Phase Transmission Line 8370
1 Three-Phase Regulating Autotransformer 8371
1 Power Line Series Compensator 8373
1 AC Voltmeter 8426
1 Phase Meter 8451-3
1 DC Motor/Generator 8501
1 Wiring Module for DC Motor/Generator 8502
1 Synchronous Motor/Generator 8507
1 Wiring Module for Synchronous Motor/Generator 8508
3 Resistive Load, 2 kW 8509
3 Inductive Load, 2 kW 8510
3 Capacitive Load, 2 kW 8511
1 DC Voltmeter/Ammeter 8513
1 AC Ammeter Module, 2 kW 8514
2 Wattmeter / Varmeter 8515-2
2 Field Rheostat, 2 kW 8524
1 Variable Power Supply 8525-2
1 Phase-Shift Indicator 8906
1 Stroboscope 8922-1
1 Coupler 8943
1 Connection Lead Set 8952-1
1 Electric Power Technology Training Equipment (User Guide) 38486-E
1 2 kW Electric Power Transmission System (Workbook) 85279
1 2 kW Electric Power Transmission System (Workbook (Instructor)) 85279-1
1 Power Supply (User Guide) 27452-D

Additional equipment required to perform the exercises (Purchased separately)

Qty Description Model Number
1 Three-Phase Transformer (750 VA) 8372
1 Variable Power Supply 8525-2
