Rigging Learning Systems

46109

Description

Moving machines is a basic requirement for any industrial plant. With the Rigging Training Systems, students learn how to move and install machines safely. Machines that need to be moved in industrial settings are all different, since they are usually built for special applications. They have different shapes and are often asymmetrical. Their weight, which is not evenly balanced on the machine supports, can create difficulties for the rigger. Therefore riggers need to be highly skilled and qualified to move machines safely and efficiently.

To help acquire these basic skills, the Rigging Training Systems were created to cover the fundamentals of rigging practices, including techniques to help students move and install machines safely.

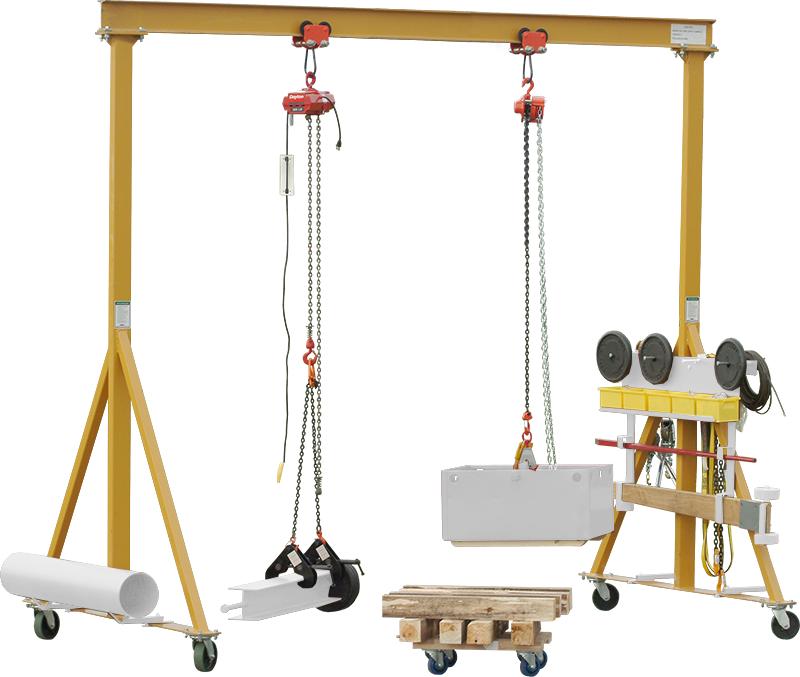

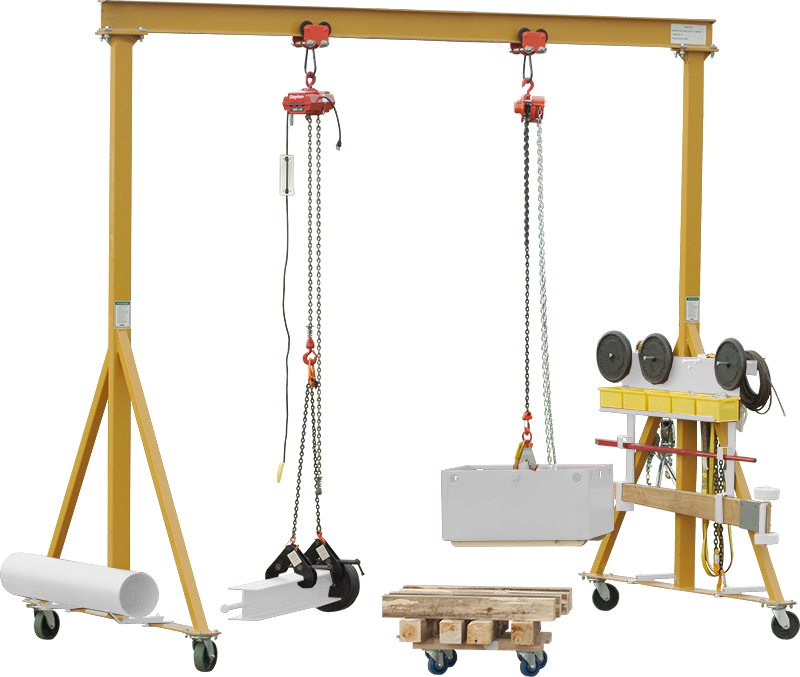

The mobile beam-style gantry is designed to conform to OSHA and CMAA standards. This heavy-duty, steel crane has polyurethane swivel casters with roller bearings, and pivoting support legs for easy maneuvering in tight places.

The Rigging Training System is 3.36 (11 feet) meters high. For lower ceilings, please use the Adjustable-Height system instead.

Features & Benefits

  • Storage for all material on the crane
  • Work orders for task-based learning
  • Industrial-grade, safe equipment
  • Includes a student manual and an instructor guide
  • Wide variety of components enhance realistic training
  • Mobile beam-style gantry crane designed to conform to OSHA and CMAA standards

Topic Coverage

  • Ropes and Slings
  • Wedge Sockets
  • Dollies and Roller Pipes
  • Gantry Cranes and Hoists
  • Machine Installation
  • Machine Movement
  • Lifting Objects and Unbalanced Loads
  • Estimated program duration: 40 hours

List of equipment

Description System Number
Rigging Training System 46109
Rigging Training System (Adjustable height) 46109-A

Consumables

Qty Description System Number
1 Twisted Manila Fiber Rope 36840
1 Nylon Solid Braided Rope 36842
1 Polyester Twisted Rope 36843
1 Polyester/Polyolefin Twisted Rope 36844
1 Steel Rope 36845
1 Nylon Thread 36858
1 Carbon Steel Wire 36862
1 Rope steel-fiber 85018

Spare Part

Qty Description System Number
2 Shackle 1/2 20565
10 Double Saddle Clip 36817
10 U-Bolt Clip 36818
1 Hydraulic Jack 36825
5 Heavy ACME Nuts 36830
5 Shackle 1/4 36846
2 Polyester Endless Sling 36850
2 Polyester Twisted Eye Sling 36851
4 Load Softeners 36853
10 Wire Rope Thimbles 36857

Optional Equipment

Qty Description System Number
1 Rigging Basics (Job Sheets - Student) 20560-6
1 Rigging Basics (Job Sheets - Instructor) 20560-7
1 Rigging Training System (Manuals on CD-ROM) 20560-A
1 Basic Rigging Textbook 37471
