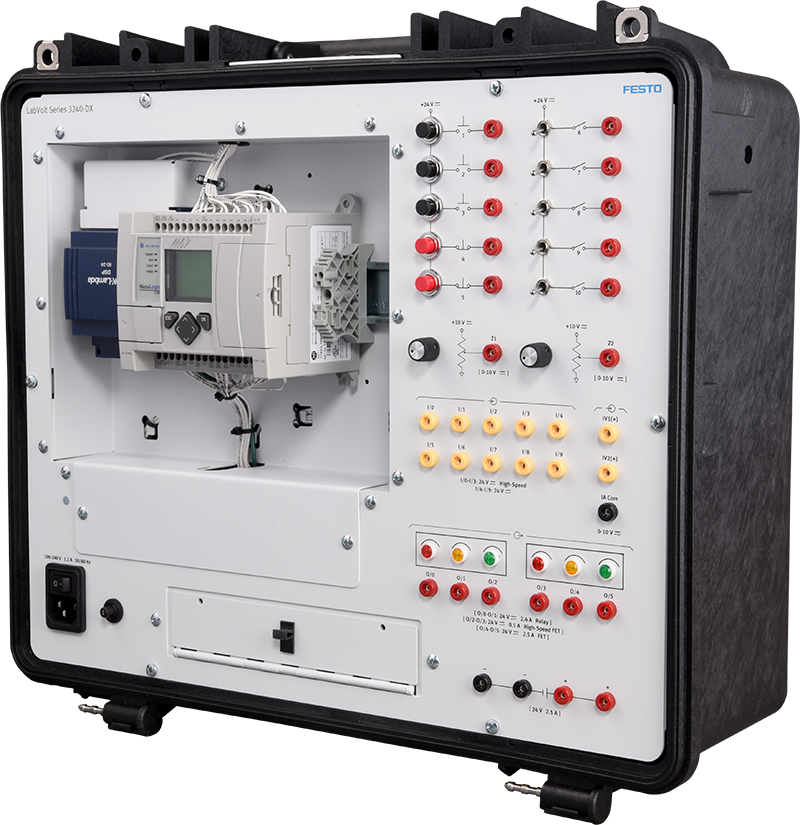

Programmable Logic Controller (AB MicroLogix 1100 with Case)

3240-D

Description

The Programmable Logic Controller (AB MicroLogix 1100 with Case) is specially designed to help students develop skills in operating, programming, and troubleshooting modern PLC-controlled systems. Driven by an Allen-Bradley® MicroLogix™ 1100 controller, the training module is fully supported by instructional material and is compatible with several didactic applications.

Features & Benefits

  • Rugged suitcase for easy transportation and storage. Also include a storage compartment for cables and accessories
  • Built-in 10/100 Mbps Ethernet/IP port for peer-to-peer messaging
  • Eight fault switches
  • Embedded Web server and LCD screen
  • Online editing functionality
  • Digital and Analog I/Os; Digital (24 VDC): 10 inputs (four 40kHz high-speed), 6 outputs (two 40 kHz high-speed); Analog (0 - 10 VDC): 2 inputs
  • PID Capability
  • Five push-button and five toggle switches
  • Built-in 24 V dc power supply
  • Easy expansion using rackless I/O modules (Analog Expansion Module 3244-4)
  • Onboard traffic light simulator
  • Compatibility with MicroLogix and SLC instruction set
  • Requires the RSLogix Micro programming software (Model 3245-A) *
    • * RSLogix Micro Starter Lite for MicroLogix 1000 and 1100 is available for free on Allen-Bradley website (www.ab.com).

List of equipment

Qty Description
1 IEC power cable 90° - NEMA (Type B) 86331
1 Programmable Logic Controller (MicroLogix 1100 with Case) 3240-D

Courseware

Qty Description
1 Programmable Logic Controller (Manuals on CD-ROM) 88270-A

Spare Part

Qty Description
1 Lead 2 mm, 15 cm, white 24987

Optional Equipment

Qty Description
1 PLC Software (RSLogix Micro, Educational) 3245-A
1 Communication Cable (Allen-Bradley) 3246-4
1 Personal Computer 8990
1 All-in-one computer 20628
1 Serial-to-USB Converter 34879
1 Touch-Screen Computer 46299
1 Touch-Screen Computer – Large 46299-A
